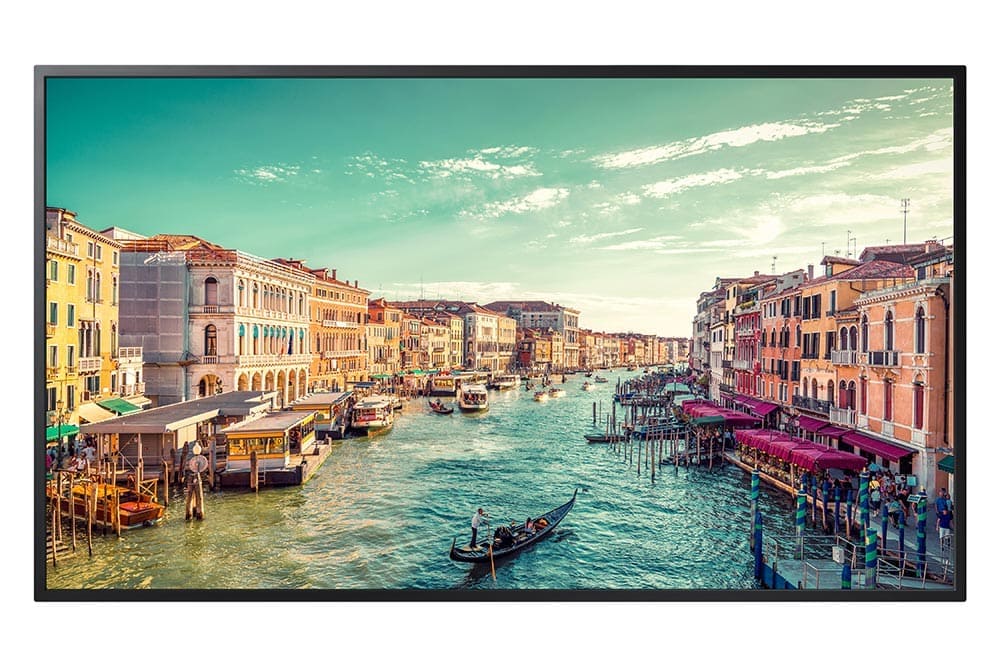

SAMSUNG SMART Signage QM65R

Highlights
Display any content in ultra-high definition with incredibly rich color on slim, efficient signage.

Engage customers with lifelike images through ultra high-definition resolution
Deliver UHD-level picture quality even with lower resolution content through innovative UHD upscaling technology and unique picture-enhancing features
Dynamic Crystal Color allows viewers to enjoy a wider spectrum of colors, up to one billion shades

Time to upscale your display

Samsung’s new QMR series displays cut through the clutter to deliver best-in-class UHD resolution as well as intelligent UHD upscaling and rich flawless colors with Dynamic Crystal Color all in a slim design.

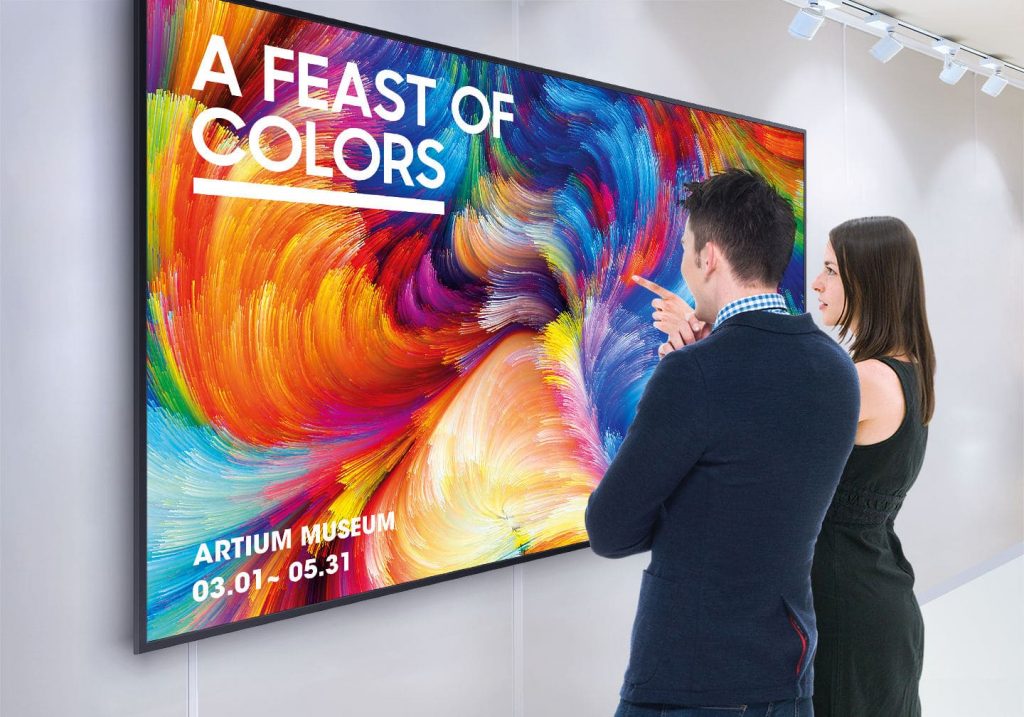

Incredible 4K picture quality

Samsung’s new QMR series provides ultra high-definition 4K resolution, creating lifelike images with sharper picture quality than ever before.

Crystal Processor 4K

Intelligent UHD upscaling technology, made possibly by Samsung’s Crystal Processor 4K, allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery.

Dynamic Crystal Display

The QMR series features Dynamic Crystal Display, using 10 bit processing for flawless color expression, allowing viewers to enjoy a wider spectrum of colors up to one billion shades. HDR+ compatibility converts standard definition content to HDR quality for sharper contrast and more vivid colors.

Perfect view with non-glare display

The QMR series features reliable, non-glare panels that provide better visibility from all angles, anytime of day allowing businesses to deliver accurate information 24/7 in locations where clear and accurate information is crucial such as airports and commuter stations.

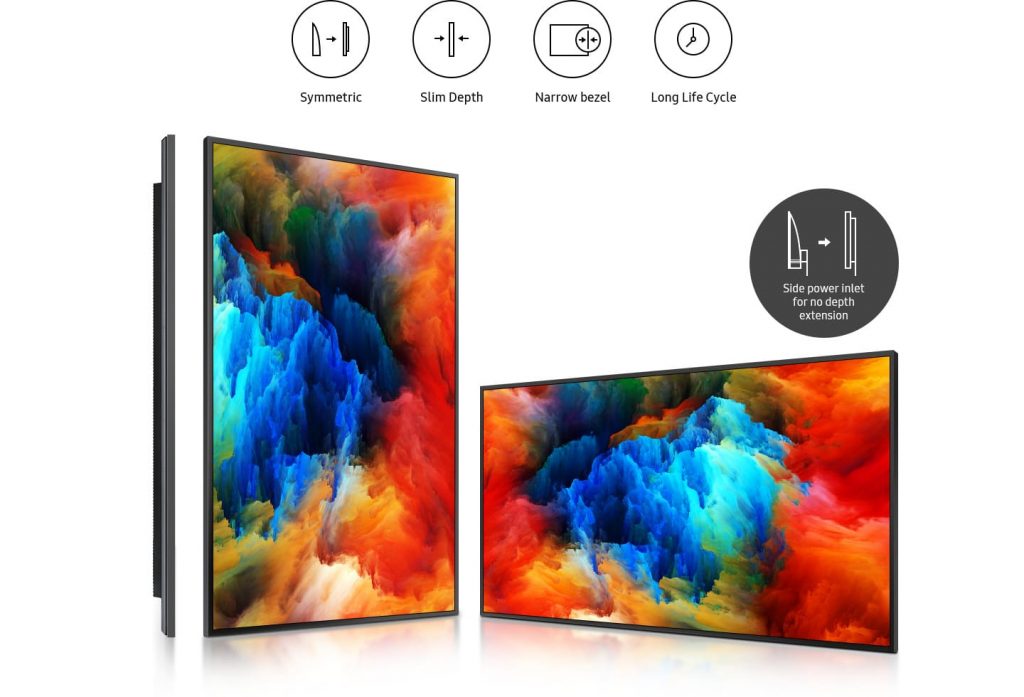

Slim and symmetrical design

The QMR series features an all-new symmetric design simplifying wall mounting and ensuring installation is seamless. The flat back and slim depth will ensure a display that will stand the test of time.

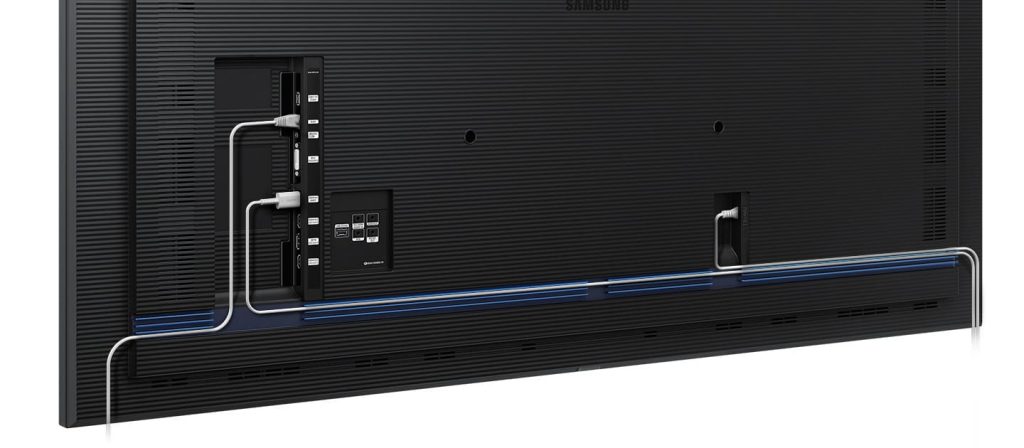

Clean cable management

With QMR’s new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping expeience for customers, even when the back of the display is visible.

Powerful, all-in-one solution

SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.

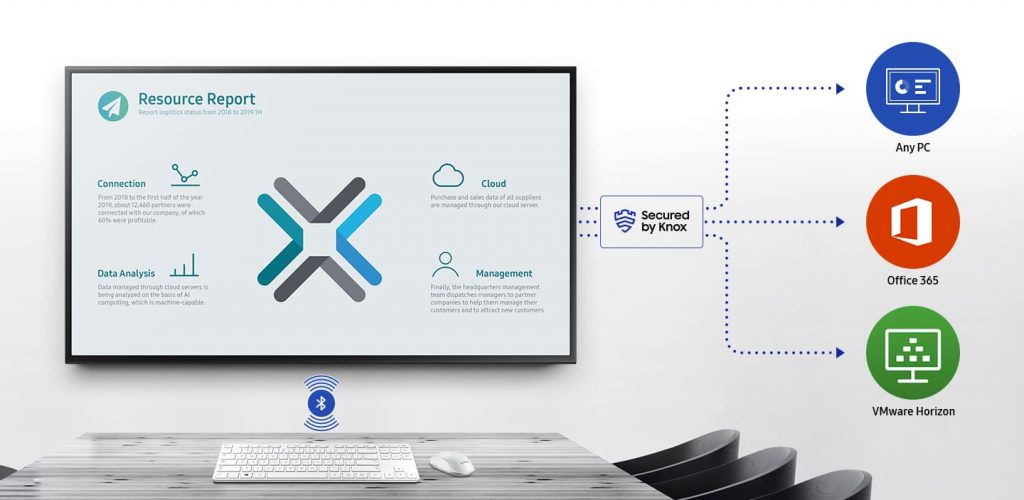

Samsung Workspace secured by Knox

With security provided by Knox, the displays feature Samsung Workspace which supports wireless cloud service access and control of a PC without needing a physical connection. Samsung Workspace simplifies meeting spaces while also improving security.

WiFi and Bluetooth built-in

Built-in WiFi and Bluetooth allow for more personalized and interactive services as well as simplifying how businesses showcase content. Whether it’s to make networking simpler or enabling interactive beacon technology in-store, QMR series displays help businesses move into the future of retail.

Specifications

PANEL

Diagonal Size	65
Type	Edge LED BLU
Resolution	3840*2160 (4K UHD)
Pixel Pitch(mm)	0.372 x 0.372
Active Display Area(mm)	1428.48 (H) x 803.52 (V)
Brightness(Typ.)	500 nit
Contrast Ratio	4000:1
Viewing Angle(H/V)	178/178
Response Time(G-to-G)	8ms(Typ.)
Display Colors	16.7M(True Display) 1.07B(Ditherd 10bit)
Color Gamut	92% (DCI-P3, CIE 1976)
Operation Hour	24/7
Haze	25%

DISPLAY

Dynamic C/R	MEGA
H-Scanning Frequency	30 ~ 81kHZ
V-Scanning Frequency	48 ~ 75HZ
Maximum Pixel Frequency	594MHz

SOUND

Speaker Type

Built in Speaker(10W + 10W)

CONNECTIVITY

Input
RGB		DVI-D, Display Port 1.2 (1)
Video		HDMI 2.0 (2)
HDCP		HDCP2.2
Audio		Stereo mini Jack, DVI, HDMI
USB		USB 2.0 x 2
Output
RGB		HDMI 2.0 (Loop-out)
Audio		Stereo mini Jack

External Control		RS232C(in/out) thru stereo jack, RJ45
External Sensor		IR

POWER

Type		Internal
Power Supply		AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
Max[W/h]		181.5
Typical[W/h]		131
Rating[W/h]		165
BTU(Max)		618.9
Sleep mode		0.5

MECHANICAL SPECIFICATION

Dimension (mm)
Set		1453.9 x 831.0 x 46.3
Package		1611 x 973 x 185
Weight (kg)
Set		24.9
Package		33.3
Stand Type		No
Bezel Width (mm)		9.2mm(U/L/R), 11.2mm(B)

OPERATION

Operating Temperature

0 ℃ ~ 40 ℃

Humidity

10 % ~ 80 %

FEATURES

Key Features		UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
Orientation		N/A
Special Features		H/W: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), IP5x, Wi-Fi/BT S/W: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
Internal Player	Processor	Coretex A72 1.7GHz Quad-Core CPU
	On-Chip Cache Memory	L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
	Clock Speed	1.7GHz
	Main Memory Interface	2.5GB LPDDR4 1.5GHz 64bit
	Graphics	Graphic resolution : 1920×1080 Output resolution : 3840×2160 (Scale up from graphic processing result.)
	Storage (FDM)	8GB (3.88GB Occupied by O/S, 4.12GB Available)
	Multimedia	Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder : AC3 (DD), MPEG
	IO Ports	USB 2.0
	Operating System	Tizen 4.0 (VDLinux)
